Designed to combine abrasive media with water directly within the mixing chamber, significantly reducing airborne dust at the point of impact. This not only improves visibility for the operator but also enhances safety and supports compliance in environments where dust control is critical. Each nozzle is supplied with a hose connector and an integrated water-control valve, allowing for precise regulation of water flow to suit different applications and site conditions. For increased manoeuvrability and ease of use in tighter or more controlled environments, a compact Mini WIN version is also available, specifically designed for use with ½″ blast hoses where improved handling and flexibility are required.
Application Types
- Dust-suppressed blasting
- Surface cleaning in controlled environments
- Coating removal with reduced airborne dust
Blasting Environment
- Urban or regulated sites
- Indoor facilities
- Environmental control zones
Materials & Construction
Learn moreTungsten Carbide (TC)
High toughness, impact-resistant performance
Silicon Carbide (SSiC)
Low mass, enhanced wear resistance

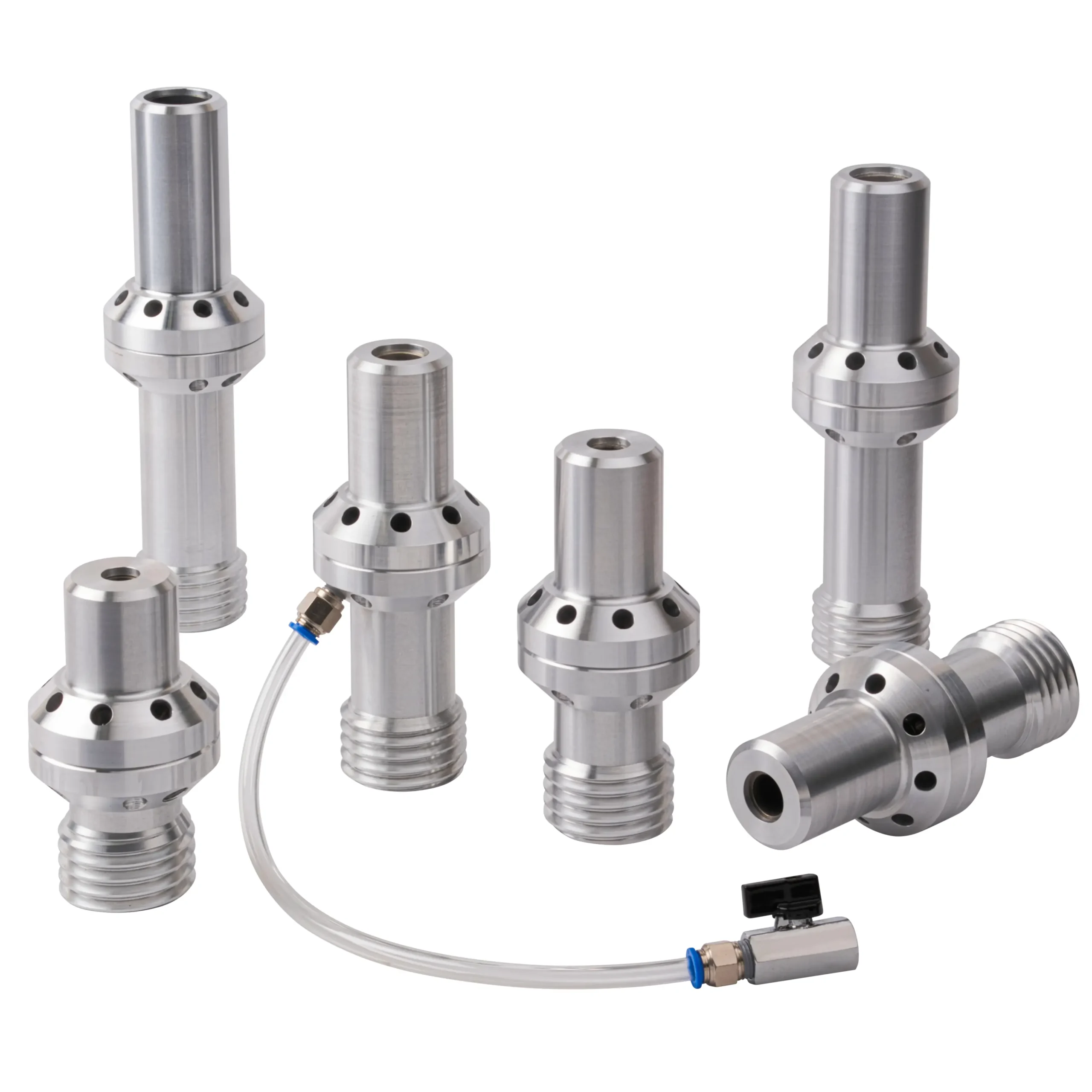

Water Induction Nozzles
Showing 3 variants
Water Induction Nozzles

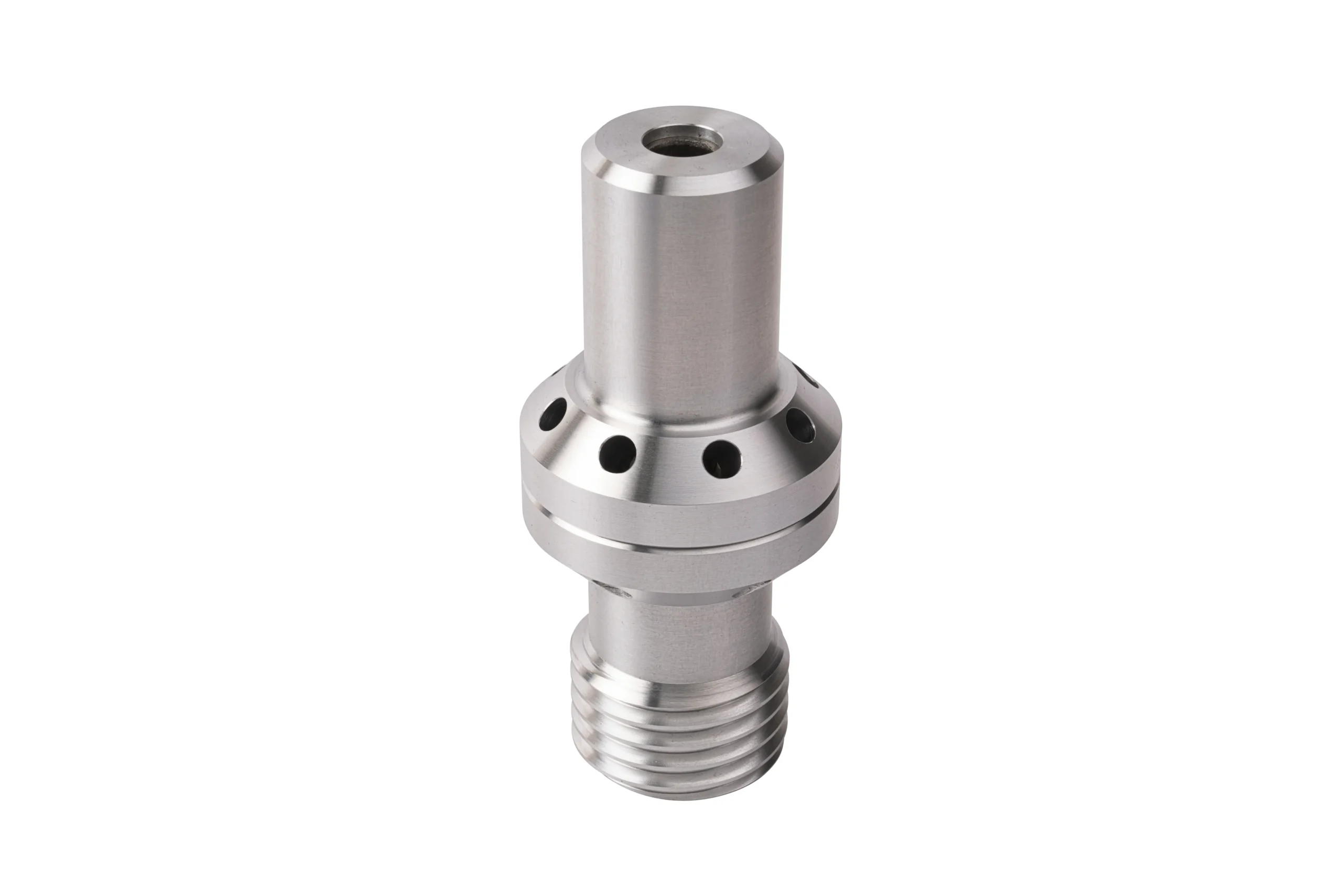

Tungsten Carbide Venturi Liner with Aluminium Jacket and Water Induction System 2″ UNC Threads
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 728005 | FBWJ 3/50 | 4.8mm | 120mm | 25mm |
| 728006 | FBWJ 4/50 | 6.35mm | 150mm | 25mm |
| 728007 | FBWJ 5/50 | 8.0mm | 160mm | 25mm |
| 728008 | FBWJ 6/50 | 9.5mm | 170mm | 25mm |
| 728009 | FBWJ 7/50 | 11.0mm | 210mm | 25mm |
| 728010 | FBWJ 8/50 | 12.5mm | 235mm | 25mm |
Part Number
728005Description
FBWJ 3/50Bore Size
4.8mmLength
120mmEntry Diameter
25mmPart Number
728006Description
FBWJ 4/50Bore Size
6.35mmLength
150mmEntry Diameter
25mmPart Number
728007Description
FBWJ 5/50Bore Size
8.0mmLength
160mmEntry Diameter
25mmPart Number
728008Description
FBWJ 6/50Bore Size
9.5mmLength
170mmEntry Diameter
25mmPart Number
728009Description
FBWJ 7/50Bore Size
11.0mmLength
210mmEntry Diameter
25mmPart Number
728010Description
FBWJ 8/50Bore Size
12.5mmLength
235mmEntry Diameter
25mmSilicon Carbide Venturi Liner with Aluminium Jacket and Water Induction System 2″ UNC Threads
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 528005 | FBWJS 3/50 | 4.8mm | 120mm | 25mm |
| 528006 | FBWJS 4/50 | 6.35mm | 150mm | 25mm |
| 528007 | FBWJS 5/50 | 8.0mm | 160mm | 25mm |
| 528008 | FBWJS 6/50 | 9.5mm | 170mm | 25mm |
| 528009 | FBWJS 7/50 | 11.0mm | 210mm | 25mm |
| 528010 | FBWJS 8/50 | 12.5mm | 235mm | 25mm |
Part Number
528005Description
FBWJS 3/50Bore Size
4.8mmLength
120mmEntry Diameter
25mmPart Number
528006Description
FBWJS 4/50Bore Size
6.35mmLength
150mmEntry Diameter
25mmPart Number
528007Description
FBWJS 5/50Bore Size
8.0mmLength
160mmEntry Diameter
25mmPart Number
528008Description
FBWJS 6/50Bore Size
9.5mmLength
170mmEntry Diameter
25mmPart Number
528009Description
FBWJS 7/50Bore Size
11.0mmLength
210mmEntry Diameter
25mmPart Number
528010Description
FBWJS 8/50Bore Size
12.5mmLength
235mmEntry Diameter
25mmHose Attachment
