Designed to produce a wider, more uniform blast pattern, this nozzle significantly increases abrasive velocity through a carefully controlled acceleration process, resulting in faster cleaning rates and improved overall efficiency. The enhanced airflow dynamics maximise the energy of the abrasive media, delivering a more powerful and consistent impact across larger surface areas while maintaining effective control.
Available as Long Venturi models, these nozzles are offered in a range of durable materials including Tungsten Carbide, Silicon Carbide, SiAlON, and Boron Carbide, allowing users to select the most suitable option based on application demands and wear resistance requirements. For more intensive, high-output environments, XL high-performance variants are also available, manufactured exclusively in Boron Carbide to provide exceptional longevity, superior performance, and optimal efficiency in the most demanding blasting conditions.
Application Types
- General surface preparation
- Coating and paint removal
- Rust and scale removal
Blasting Environment
- Large open areas
- Shipyards and fabrication yards
- Industrial maintenance sites
Materials & Construction
Learn moreTungsten Carbide (TC)
High toughness, impact-resistant performance
Silicon Carbide (SSiC)
Low mass, enhanced wear resistance
SiAlON (Advanced Silicon Nitride Ceramic)
Optimised toughness-to-wear ratio
Boron Carbide (B₄C)
Pressureless-sintered and Hi TUF hot-pressed options for general and highly aggressive abrasives

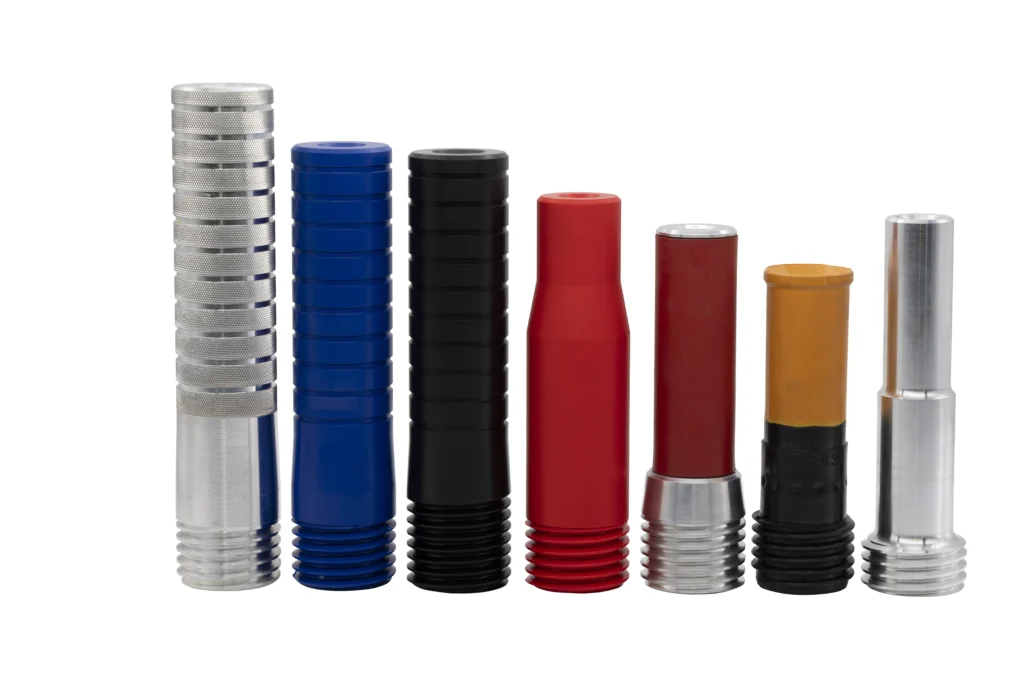

Venturi Nozzles
Showing 6 variants
- Aluminium Jacket
- Acetal Jacket
- Duragrip Sleeve
- Hi Tuf Aluminium Jacket
- Rubber Jacket
- Syclone Nozzles
- Boron Alloy
Aluminium Jacket

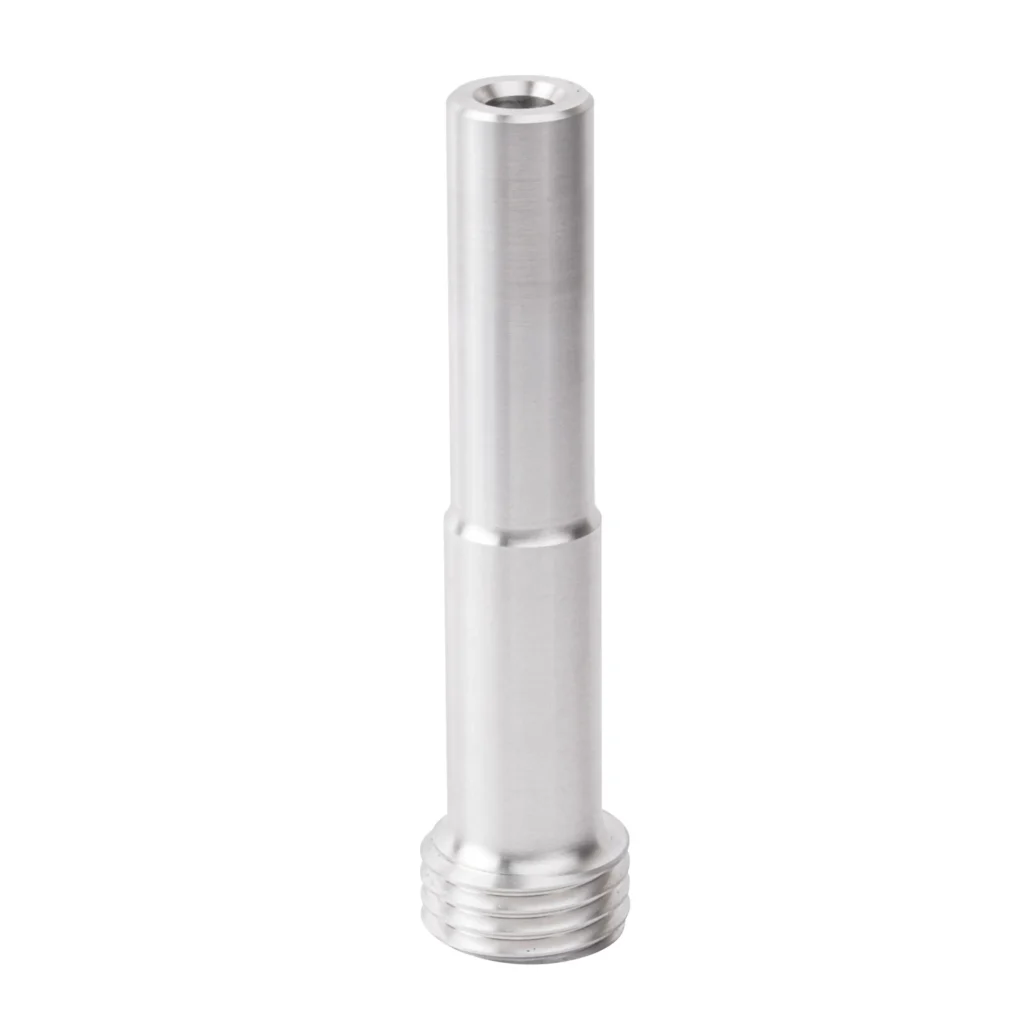

Tungsten Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724000 | FBC 32-3/50 | 4.8mm | 140mm | 32mm |
| 724001 | FBC 32-4/50 | 6.35mm | 140mm | 32mm |
| 724002 | FBC 32-5/50 | 8.0mm | 150mm | 32mm |
| 724003 | FBC 32-6/50 | 9.5mm | 175mm | 32mm |
| 724004 | FBC 32-7/50 | 11.0mm | 205mm | 32mm |
| 724005 | FBC 32-8/50 | 12.5mm | 235mm | 32mm |
| 724006 | FBC 32-10/50 | 16.0mm | 235mm | 32mm |
| 724007 | FBC 32-12/50 | 19.0mm | 235mm | 32mm |
Part Number
724000Description
FBC 32-3/50Bore Size
4.8mmLength
140mmEntry Diameter
32mmPart Number
724001Description
FBC 32-4/50Bore Size
6.35mmLength
140mmEntry Diameter
32mmPart Number
724002Description
FBC 32-5/50Bore Size
8.0mmLength
150mmEntry Diameter
32mmPart Number
724003Description
FBC 32-6/50Bore Size
9.5mmLength
175mmEntry Diameter
32mmPart Number
724004Description
FBC 32-7/50Bore Size
11.0mmLength
205mmEntry Diameter
32mmPart Number
724005Description
FBC 32-8/50Bore Size
12.5mmLength
235mmEntry Diameter
32mmPart Number
724006Description
FBC 32-10/50Bore Size
16.0mmLength
235mmEntry Diameter
32mmPart Number
724007Description
FBC 32-12/50Bore Size
19.0mmLength
235mmEntry Diameter
32mmTungsten Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724010 | FBC 3/50 | 4.8mm | 140mm | 25mm |
| 724011 | FBC 4/50 | 6.35mm | 140mm | 25mm |
| 724012 | FBC 5/50 | 8.0mm | 150mm | 25mm |
| 724013 | FBC 6/50 | 9.5mm | 175mm | 25mm |
| 724014 | FBC 7/50 | 11.0mm | 205mm | 25mm |
| 724015 | FBC 8/50 | 12.5mm | 235mm | 25mm |
Part Number
724010Description
FBC 3/50Bore Size
4.8mmLength
140mmEntry Diameter
25mmPart Number
724011Description
FBC 4/50Bore Size
6.35mmLength
140mmEntry Diameter
25mmPart Number
724012Description
FBC 5/50Bore Size
8.0mmLength
150mmEntry Diameter
25mmPart Number
724013Description
FBC 6/50Bore Size
9.5mmLength
175mmEntry Diameter
25mmPart Number
724014Description
FBC 7/50Bore Size
11.0mmLength
205mmEntry Diameter
25mmPart Number
724015Description
FBC 8/50Bore Size
12.5mmLength
235mmEntry Diameter
25mmSilicon Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 524000 | FBSCA 32-3/50 | 4.8mm | 140mm | 32mm |
| 524001 | FBSCA 32-4/50 | 6.35mm | 140mm | 32mm |
| 524002 | FBSCA 32-5/50 | 8.0mm | 150mm | 32mm |
| 524003 | FBSCA 32-6/50 | 9.5mm | 175mm | 32mm |
| 524004 | FBSCA 32-7/50 | 11.0mm | 205mm | 32mm |
| 524005 | FBSCA 32-8/50 | 12.5mm | 235mm | 32mm |
Part Number
524000Description
FBSCA 32-3/50Bore Size
4.8mmLength
140mmEntry Diameter
32mmPart Number
524001Description
FBSCA 32-4/50Bore Size
6.35mmLength
140mmEntry Diameter
32mmPart Number
524002Description
FBSCA 32-5/50Bore Size
8.0mmLength
150mmEntry Diameter
32mmPart Number
524003Description
FBSCA 32-6/50Bore Size
9.5mmLength
175mmEntry Diameter
32mmPart Number
524004Description
FBSCA 32-7/50Bore Size
11.0mmLength
205mmEntry Diameter
32mmPart Number
524005Description
FBSCA 32-8/50Bore Size
12.5mmLength
235mmEntry Diameter
32mmSilicon Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 524010 | FBSCA 3/50 | 4.8mm | 140mm | 25mm |
| 524011 | FBSCA 4/50 | 6.35mm | 140mm | 25mm |
| 524012 | FBSCA 5/50 | 8.0mm | 150mm | 25mm |
| 524013 | FBSCA 6/50 | 9.5mm | 175mm | 25mm |
Part Number
524010Description
FBSCA 3/50Bore Size
4.8mmLength
140mmEntry Diameter
25mmPart Number
524011Description
FBSCA 4/50Bore Size
6.35mmLength
140mmEntry Diameter
25mmPart Number
524012Description
FBSCA 5/50Bore Size
8.0mmLength
150mmEntry Diameter
25mmPart Number
524013Description
FBSCA 6/50Bore Size
9.5mmLength
175mmEntry Diameter
25mmBoron Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724000-X | FBCB 32-3/50 | 4.8mm | 140mm | 32mm |
| 724001-X | FBCB 32-4/50 | 6.35mm | 140mm | 32mm |
| 724002-X | FBCB 32-5/50 | 8.0mm | 150mm | 32mm |
| 724003-X | FBCB 32-6/50 | 9.5mm | 175mm | 32mm |
| 724004-X | FBCB 32-7/50 | 11.0mm | 205mm | 32mm |
| 724005-X | FBCB 32-8/50 | 12.5mm | 235mm | 32mm |
Part Number
724000-XDescription
FBCB 32-3/50Bore Size
4.8mmLength
140mmEntry Diameter
32mmPart Number
724001-XDescription
FBCB 32-4/50Bore Size
6.35mmLength
140mmEntry Diameter
32mmPart Number
724002-XDescription
FBCB 32-5/50Bore Size
8.0mmLength
150mmEntry Diameter
32mmPart Number
724003-XDescription
FBCB 32-6/50Bore Size
9.5mmLength
175mmEntry Diameter
32mmPart Number
724004-XDescription
FBCB 32-7/50Bore Size
11.0mmLength
205mmEntry Diameter
32mmPart Number
724005-XDescription
FBCB 32-8/50Bore Size
12.5mmLength
235mmEntry Diameter
32mmBoron Carbide Venturi Nozzles with Aluminium Jacket 2″ UNC Thread
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724010-X | FBCB 3/50 | 4.8mm | 140mm | 25mm |
| 724011-X | FBCB 4/50 | 6.35mm | 140mm | 25mm |
| 724012-X | FBCB 5/50 | 8.0mm | 150mm | 25mm |
| 724013-X | FBCB 6/50 | 9.5mm | 175mm | 25mm |
Part Number
724010-XDescription
FBCB 3/50Bore Size
4.8mmLength
140mmEntry Diameter
25mmPart Number
724011-XDescription
FBCB 4/50Bore Size
6.35mmLength
140mmEntry Diameter
25mmPart Number
724012-XDescription
FBCB 5/50Bore Size
8.0mmLength
150mmEntry Diameter
25mmPart Number
724013-XDescription
FBCB 6/50Bore Size
9.5mmLength
175mmEntry Diameter
