Specifically engineered for internal and confined-space blasting applications, where the abrasive stream needs to be directed upward or at controlled angles. Their unique design allows operators to effectively clean the inside of pipes, tubes, cylinders, and other hard-to-reach areas that standard nozzles cannot access. By ensuring consistent abrasive flow and targeted impact within enclosed spaces, Stick-Up Nozzles improve cleaning efficiency, reduce manual repositioning, and help achieve a more uniform surface finish. They are an essential solution for maintenance, refurbishment, and preparation tasks involving internal surfaces across a range of industrial applications.
Application Types
- Blast pot / machine-mounted systems
- Fixed blasting operations
- Automated or semi-automated systems
Blasting Environment
- Blast rooms
- Cabinets
- Production facilities
Materials & Construction
Learn moreTungsten Carbide (TC)
High toughness, impact-resistant performance
Silicon Carbide (SSiC)
Low mass, enhanced wear resistance
Boron Carbide (B₄C)
Pressureless-sintered and Hi TUF hot-pressed options for general and highly aggressive abrasives

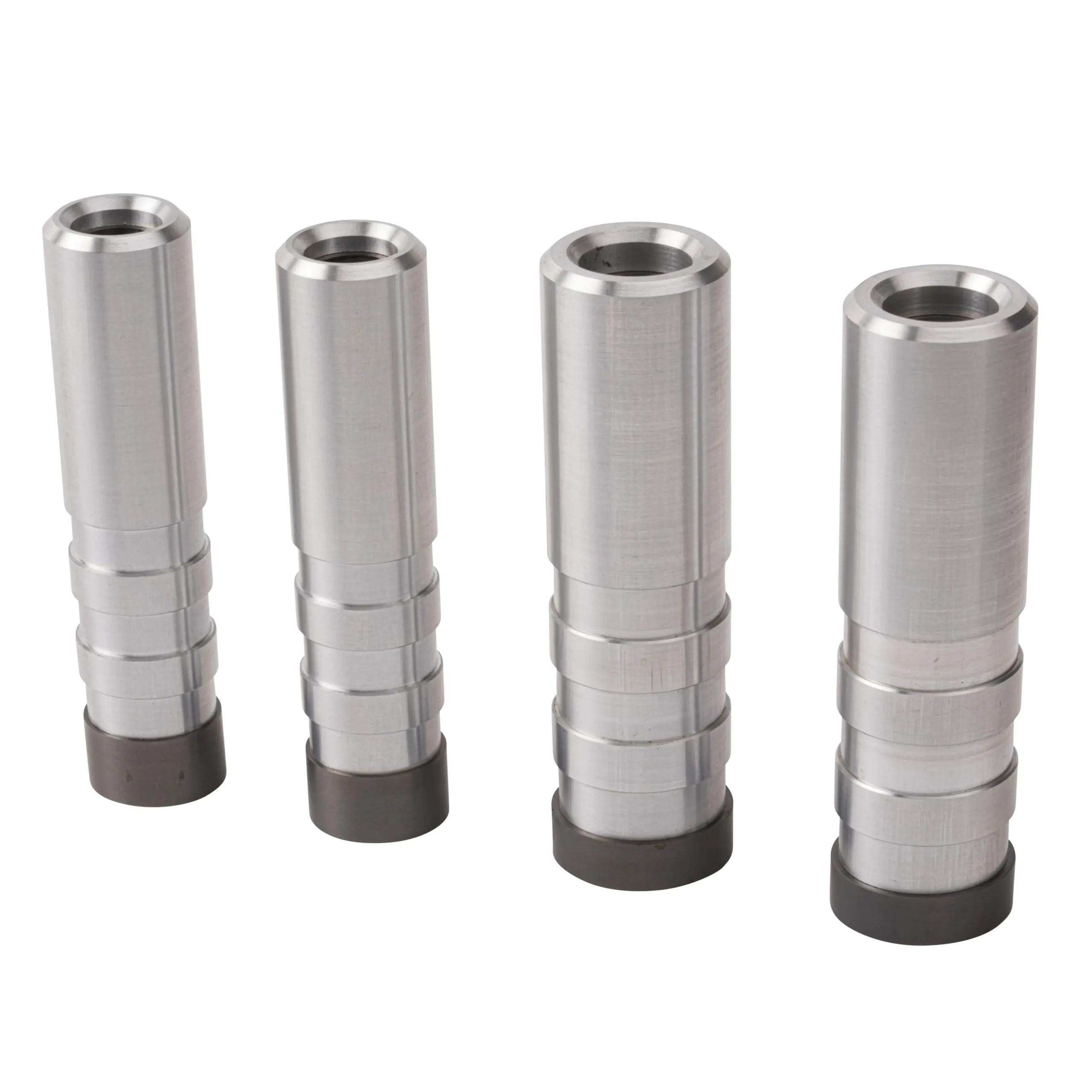

Stick-Up Nozzles
Showing 6 variants
Stick-Up Nozzles
Tungsten Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 32mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724182 | FBSU 5/32 | 8.0mm | 115mm | 24mm |
| 724183 | FBSU 6/32 | 9.5mm | 115mm | 24mm |
| 724177 | FBSU 7/32 | 11.0mm | 115mm | 24mm |
| 724178 | FBSU 8/32 | 12.5mm | 115mm | 24mm |
Part Number
724182Description
FBSU 5/32Bore Size
8.0mmLength
115mmEntry Diameter
24mmPart Number
724183Description
FBSU 6/32Bore Size
9.5mmLength
115mmEntry Diameter
24mmPart Number
724177Description
FBSU 7/32Bore Size
11.0mmLength
115mmEntry Diameter
24mmPart Number
724178Description
FBSU 8/32Bore Size
12.5mmLength
115mmEntry Diameter
24mmTungsten Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 25mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724179 | FBSU 4/25 | 6.35mm | 110mm | 20mm |
| 724180 | FBSU 5/25 | 8.0mm | 110mm | 20mm |
| 724181 | FBSU 6/25 | 9.5mm | 110mm | 20mm |
Part Number
724179Description
FBSU 4/25Bore Size
6.35mmLength
110mmEntry Diameter
20mmPart Number
724180Description
FBSU 5/25Bore Size
8.0mmLength
110mmEntry Diameter
20mmPart Number
724181Description
FBSU 6/25Bore Size
9.5mmLength
110mmEntry Diameter
20mmSilicon Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 32mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 524182 | FBSUS 5/32 | 8.0mm | 115mm | 24mm |
| 524183 | FBSUS 6/32 | 9.5mm | 115mm | 24mm |
| 524177 | FBSUS 7/32 | 11.0mm | 115mm | 24mm |
| 524178 | FBSUS 8/32 | 12.5mm | 115mm | 24mm |
Part Number
524182Description
FBSUS 5/32Bore Size
8.0mmLength
115mmEntry Diameter
24mmPart Number
524183Description
FBSUS 6/32Bore Size
9.5mmLength
115mmEntry Diameter
24mmPart Number
524177Description
FBSUS 7/32Bore Size
11.0mmLength
115mmEntry Diameter
24mmPart Number
524178Description
FBSUS 8/32Bore Size
12.5mmLength
115mmEntry Diameter
24mmSilicon Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 25mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 524179 | FBSUS 4/25 | 6.35mm | 110mm | 20mm |
| 524180 | FBSUS 5/25 | 8.0mm | 110mm | 20mm |
| 524181 | FBSUS 6/25 | 9.5mm | 110mm | 20mm |
Part Number
524179Description
FBSUS 4/25Bore Size
6.35mmLength
110mmEntry Diameter
20mmPart Number
524180Description
FBSUS 5/25Bore Size
8.0mmLength
110mmEntry Diameter
20mmPart Number
524181Description
FBSUS 6/25Bore Size
9.5mmLength
110mmEntry Diameter
20mmBoron Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 32mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724182-X | FBSUB 5/32 | 8.0mm | 115mm | 24mm |
| 724183-X | FBSUB 6/32 | 9.5mm | 115mm | 24mm |
| 724177-X | FBSUB 7/32 | 11.0mm | 115mm | 24mm |
| 724178-X | FBSUB 8/32 | 12.5mm | 115mm | 24mm |
Part Number
724182-XDescription
FBSUB 5/32Bore Size
8.0mmLength
115mmEntry Diameter
24mmPart Number
724183-XDescription
FBSUB 6/32Bore Size
9.5mmLength
115mmEntry Diameter
24mmPart Number
724177-XDescription
FBSUB 7/32Bore Size
11.0mmLength
115mmEntry Diameter
24mmPart Number
724178-XDescription
FBSUB 8/32Bore Size
12.5mmLength
115mmEntry Diameter
24mmBoron Carbide Liner with Aluminium Jacket “Stick-Up” Nozzles for 25mm ID Blast Hoses
| Part Number | Description | Bore Size | Length | Entry Diameter |
|---|---|---|---|---|
| 724179-X | FBSUB 4/25 | 6.35mm | 110mm | 20mm |
| 724180-X | FBSUB 5/25 | 8.0mm | 110mm | 20mm |
| 724181-X | FBSUB 6/25 | 9.5mm | 110mm | 20mm |
Part Number
724179-XDescription
FBSUB 4/25Bore Size
6.35mmLength
110mmEntry Diameter
20mmPart Number
724180-XDescription
FBSUB 5/25Bore Size
8.0mmLength
110mmEntry Diameter
20mmPart Number
724181-XDescription
FBSUB 6/25Bore Size
9.5mmLength
110mmEntry Diameter
20mmExplore Our Other Products
