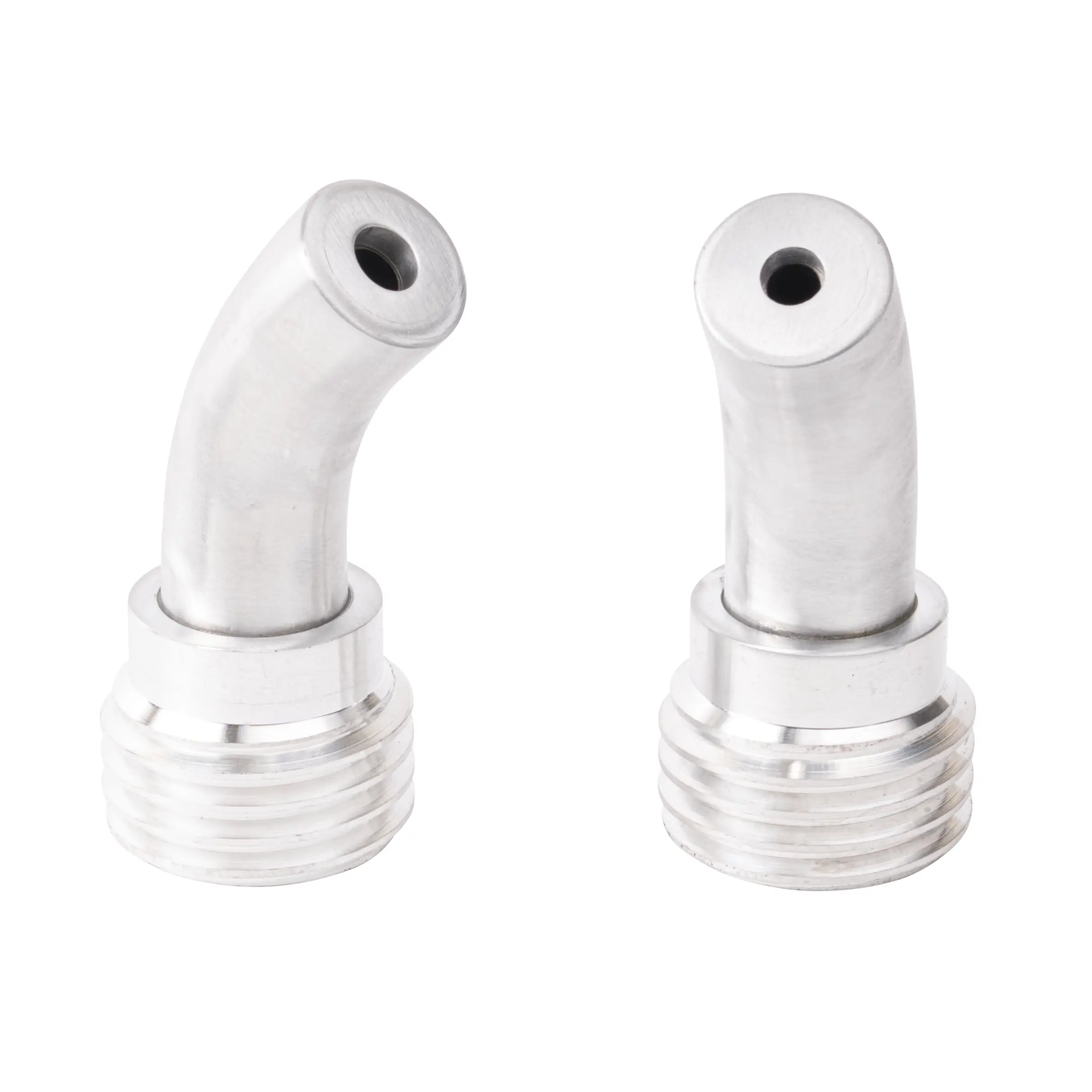

Banana Nozzles

The curved profile of this nozzle is specifically designed to enable effective blasting around tubes, curved radii, and other difficult-to-reach surfaces where straight nozzles would be impractical or inefficient. By redirecting the abrasive stream along angled or contoured paths, it ensures consistent coverage and thorough cleaning across complex geometries and confined areas. This makes it particularly valuable for applications involving pipework, rounded structures, and intricate components where precision and access are critical. Available in sizes #4 through #8, it offers flexibility to suit a range of blasting requirements while maintaining optimal performance and control.


Application Types

  • Curved surface blasting
  • Tube and profile cleaning
  • Difficult access geometry

Blasting Environment

  • Structural steel
  • Fabrication shops
  • Complex component work

Materials & Construction

Learn more

Boron Carbide (B₄C)

Pressureless-sintered and Hi TUF hot-pressed options for general and highly aggressive abrasives

Learn more

Banana Nozzles

Showing 1 variants

Banana Nozzles

Hi TUF Boron Carbide 40° Banana Blast Nozzle 2″ UNC Threads

UNC Threads

Enquire
Part Number Description Bore Size Length Entry Diameter
234104 BN-4 6.35mm 115mm 25mm
234105 BN-5 8.0mm 115mm 25mm
234106 BN-6 9.5mm 115mm 25mm
234107 BN-7 11.0mm 115mm 25mm
234108 BN-8 12.5mm 115mm 25mm

Part Number

234104

Description

BN-4

Bore Size

6.35mm

Length

115mm

Entry Diameter

25mm

Part Number

234105

Description

BN-5

Bore Size

8.0mm

Length

115mm

Entry Diameter

25mm

Part Number

234106

Description

BN-6

Bore Size

9.5mm

Length

115mm

Entry Diameter

25mm

Part Number

234107

Description

BN-7

Bore Size

11.0mm

Length

115mm

Entry Diameter

25mm

Part Number

234108

Description

BN-8

Bore Size

12.5mm

Length

115mm

Entry Diameter

25mm
